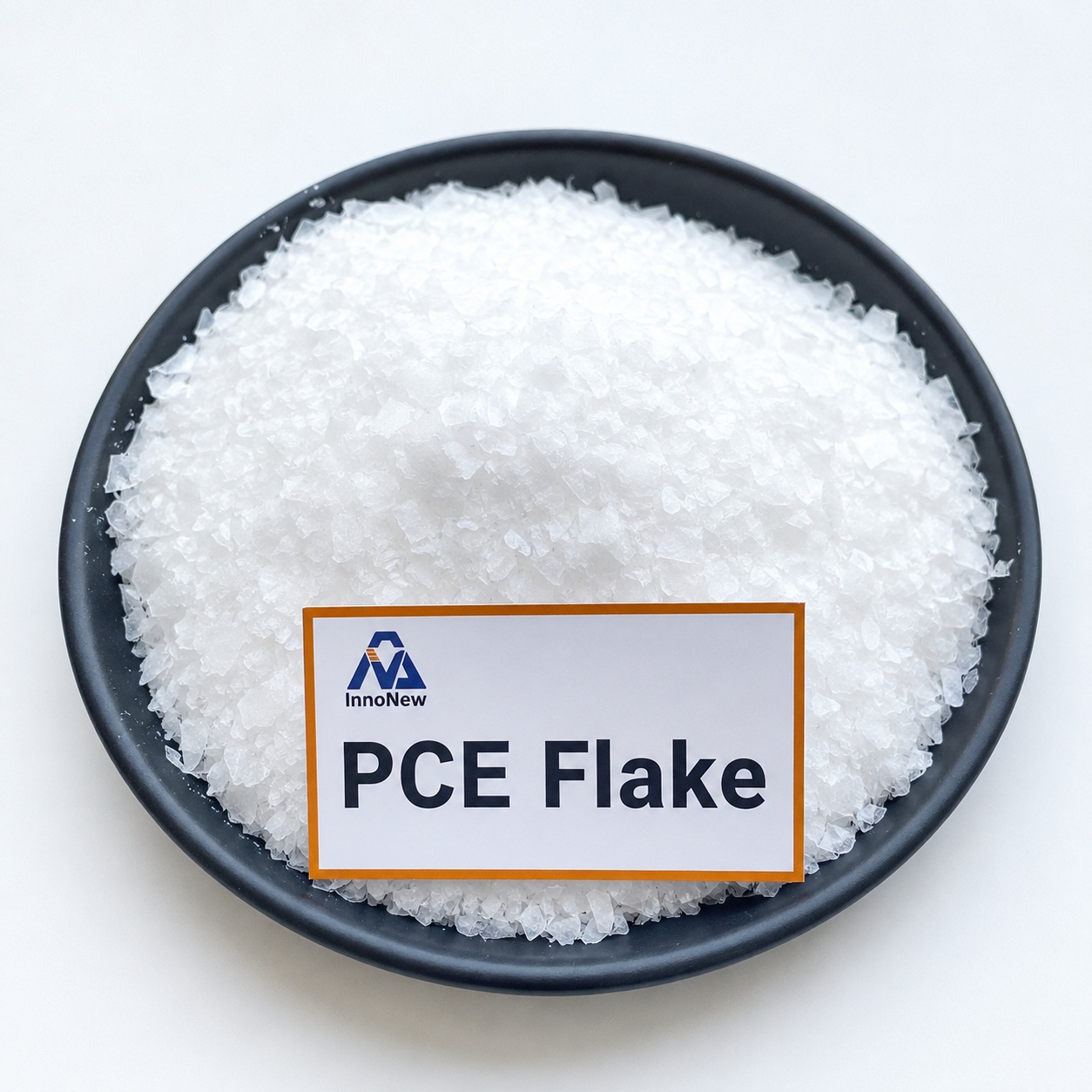

Polycarboxylate Ether (PCE) Flake
High-Performance PCE Flake for Concrete Admixture Manufacturing
InnoNew® PCE Flake is a next-generation polycarboxylate ether superplasticizer supplied in flake form, specifically designed for manufacturing high-performance concrete admixtures. Combining the advantages of liquid PCE technology with improved transportation efficiency and storage stability, PCE Flake delivers exceptional water reduction, slump retention, cement dispersion, and concrete durability.
Manufactured using advanced polycarboxylate polymer technology, InnoNew® PCE Flake is easily dissolved in water to prepare customized liquid superplasticizer formulations, making it an ideal solution for admixture producers, ready-mix concrete plants, precast concrete manufacturers, and infrastructure projects worldwide.
Product Overview
| Item | Specification |
|---|---|
| Product Name | Polycarboxylate Ether Flake |
| Other Name | PCE Flake, Polycarboxylate Superplasticizer Flake |
| Appearance | White to Light Yellow Solid Flake |
| Active Content | ≥97% |
| Moisture | ≤3.0% |
| Water Reduction Rate | ≥25% |
| Chloride Content | ≤0.02% |
| pH Value (20% Solution) | 6.0 – 8.0 |
| Solubility | Completely Soluble in Water |
| Bulk density, kg/m3 | 450-650 |
Customized specifications available upon request.
What is PCE Flake?
Polycarboxylate Ether Flake is a concentrated solid form of polycarboxylate superplasticizer. After dissolving in water, it produces a high-performance liquid admixture capable of significantly reducing water demand while maintaining excellent workability and strength development.
Compared with conventional naphthalene-based and lignosulfonate-based water reducers, PCE Flake provides:
- Higher water reduction efficiency
- Better slump retention
- Lower dosage requirements
- Enhanced cement adaptability
- Superior concrete strength development
- Improved durability performance
Its comb-shaped molecular structure creates both electrostatic repulsion and steric hindrance effects, enabling superior cement particle dispersion.
Key Benefits
Excellent Water Reduction
- Water reduction rate ≥25%
- Lower water-cement ratio
- Higher compressive strength
- Reduced cement consumption
Outstanding Slump Retention
- Maintains workability during transportation
- Suitable for hot climate conditions
- Reduced slump loss over time
High Solubility
- Rapid dissolution in water
- Easy formulation of liquid admixtures
- Uniform distribution in concrete systems
Chloride-Free Formula
- Safe for reinforced concrete structures
- Suitable for prestressed concrete applications
Improved Durability
- Reduced permeability
- Enhanced freeze-thaw resistance
- Better sulfate resistance
- Increased service life of concrete structures
Cost Optimization
- Lower transportation costs than liquid products
- Reduced storage volume
- Flexible formulation possibilities
Typical Applications
Concrete Admixture Manufacturing
Used as the primary raw material for producing:
- High-range water reducers
- Slump retention admixtures
- Early-strength admixtures
- Customized concrete superplasticizers
Ready-Mix Concrete
Provides:
- Improved pumpability
- Better workability retention
- Consistent concrete quality
Precast Concrete
Ideal for:
- PHC Spun Piles
- PC Components
- Precast Panels
- Bridge Segments
- Tunnel Segments
High-Performance Concrete (HPC)
Suitable for:
- High-strength concrete
- Ultra-high-performance concrete (UHPC)
- Self-compacting concrete (SCC)
- Low water-cement ratio concrete
Infrastructure Projects
Recommended for:
- Bridges
- Highways
- Railways
- Ports
- Airports
- Water Treatment Facilities
Technical Advantages Over Liquid PCE
| Feature | PCE Flake | Liquid PCE |
|---|---|---|
| Active Content | ≥97% | 40–50% |
| Transportation Efficiency | Excellent | Moderate |
| Storage Stability | Excellent | Good |
| Freeze Resistance | Excellent | Limited |
| Export Cost | Lower | Higher |
| Formulation Flexibility | Excellent | Limited |
For international admixture manufacturers, PCE Flake offers significant logistics and warehousing advantages while maintaining equivalent performance after dissolution.
Recommended Usage
For Admixture Production
- Add PCE Flake into clean water.
- Stir continuously until fully dissolved.
- Prepare a 10%–20% active solution.
- Blend with required functional additives if necessary.
- Use as a conventional liquid superplasticizer.
Recommended Dosage
| Application | Dosage |
|---|---|
| Ready-Mix Concrete | 0.15%–0.30% of cement weight |
| Precast Concrete | 0.10%–0.25% |
| High Strength Concrete | 0.20%–0.40% |
| Self-Compacting Concrete | Trial Mix Recommended |
Actual dosage should be determined through laboratory and field testing.

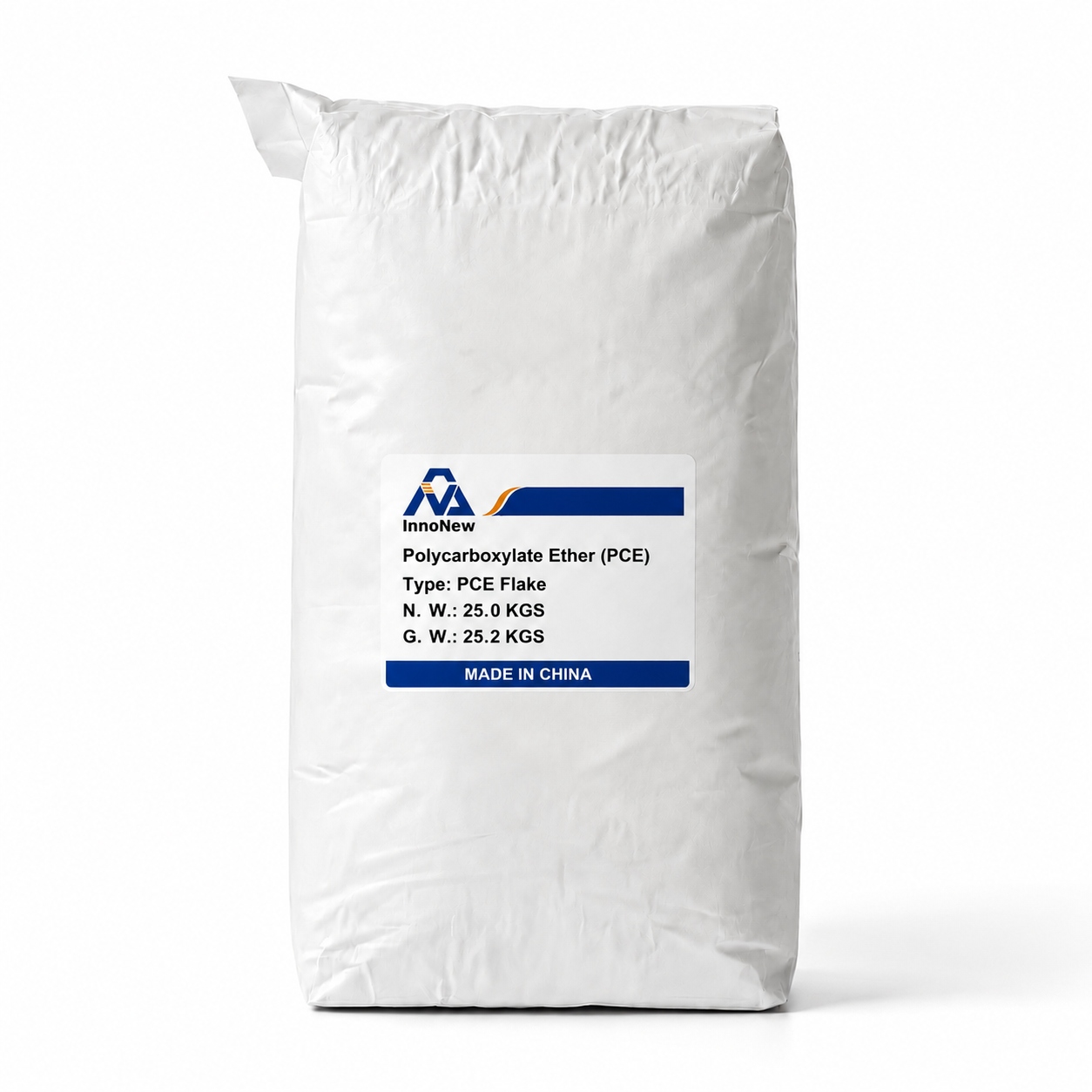

Packaging & Storage
Packaging Options
- 25 kg Kraft Paper Bag
- 500 kg Jumbo Bag
- 600 kg Jumbo Bag
- Customized Packaging Available
Storage Conditions
- Store in a cool, dry environment
- Avoid moisture exposure
- Protect from direct sunlight
- Keep packaging sealed after opening
Shelf life: 12 months under recommended storage conditions.
Why Choose InnoNew® PCE Flake?
Consistent Quality Control
Produced under strict manufacturing and testing procedures to ensure stable performance batch after batch.
Global Export Experience
Supplied to customers across:
- Southeast Asia
- Middle East
- Africa
- South America
- Europe
Technical Support
Our engineering team assists customers with:
- Admixture formulation development
- Concrete mix design optimization
- Product customization
- Application troubleshooting
Chloride-Free Technology
Specially developed for reinforced and prestressed concrete applications where long-term durability is critical.
FAQ
1. What is the difference between PCE Flake and PCE Liquid?
PCE Flake is a concentrated solid form of polycarboxylate ether. It must be dissolved in water before use and offers lower transportation and storage costs compared to liquid products.
2. Can PCE Flake be used directly in concrete?
Generally, PCE Flake is first dissolved in water to prepare a liquid admixture before being added to concrete.
3. Is PCE Flake chloride-free?
Yes. InnoNew® PCE Flake is manufactured without intentionally added chlorides and is suitable for reinforced and prestressed concrete applications.
4. What water reduction can be achieved?
Typical water reduction rates exceed 25%, depending on cement type, dosage, and mix design.
5. Is PCE Flake suitable for PHC spun piles?
Yes. PCE Flake is widely used in precast and prestressed concrete production, including PHC and PC spun pile manufacturing, where high strength and durability are required.
